The Autel MaxiTPMS diagnostic and service tool is specially designed to work with ALL known magnetic as well as frequency-triggered tire sensors for all vehicles sold in North America. Compared to other tools, it provides on-screen step by step ...
Features
 |  Publisher : Autel Company : Autel List Price: |
Features
- Provides easy, accurate and affordable way to tap into real-time tire-pressure monitoring systems (TPMS) via wireless tool using 125 kHz continuous or modulated wave signals
- Pre-selection process offers faster activation and diagnostics of data including sensor ID, tire pressure, temperature, battery condition and OE part number
- 1-year free Internet software upgrade via the USB port
- Capability to save up to 16 TPMS data records and print data via from PC after downloading via USB cable
- Easy-to-use and long-lived tool features clear, easy-to-read LCD display and automatic power-off to preserve battery life, as well as a hard case for unit protection
Product Description

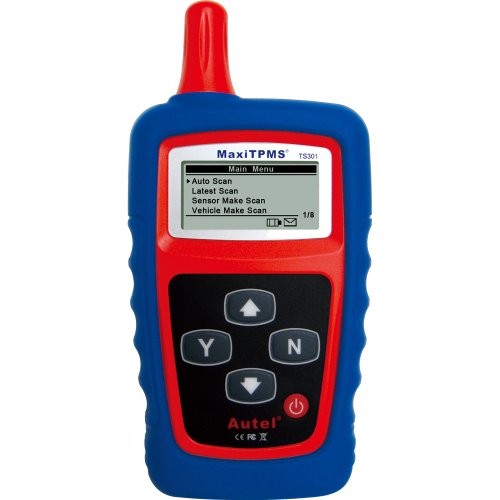

The Autel MaxiTPMS diagnostic and service tool is specially designed to work with ALL known magnetic as well as frequency-triggered tire sensors for all vehicles sold in North America. Compared to other tools, it provides on-screen step by step intuitive instructions that offer users both visual and audible response to ensure that the TPMS sensors are working properly. This tool receives both 315 MHz as well as 433.92 MHz and interprets data including sensor ID, tire pressure, temperature, battery condition as well as OE part number signals. It provides accurate diagnosing results which users can trust and is easy-to-use with clear easy-to-read LCD display. This tool features auto power-off to preserve battery life and displays the replacement part number, if a failed sensor is detected.Amazon.com Product Description
The condition and varying seasonal levels to which vehicle tires are inflated has a direct correlation to overall vehicle performance in many areas. With that in mind, over the years the automotive industry has integrated a series of real-time tire-pressure monitoring systems (TPMS) into their makes and models. The Autel MaxiTPMS TS301 provides automotive professionals and do-it-yourselfers an easy, accurate and affordable way to tap into these systems. A diagnostic and service tool specially designed to work with all known magnetic- and frequency-triggered tire sensors for all vehicles sold in North America, the MaxiTPMS TS301 provides on-screen step-by-step intuitive instructions and offers both visual and audible responses to ensure that TPMS sensors are working properly. The TS301 also comes packed with additional features designed to extend its usability such as onboard storage space for up to 16 data saves, the ability to print data from your PC via USB cable and a variety of included accessories.Complete Features & Benefits:
- Activates magnetic and frequency triggered tire sensors using 125 kHz continuous or modulated wave signals
- Receives both 315 MHz and 43392 MHz signals
- Decodes sensor data and provides visual and audible responses to confirm sensors are working properly
- Interprets data including sensor ID, tire pressure, temperature, battery condition and OE part number
- Pre-selection process offers faster activation and diagnostics
- Accurate diagnosing results
- 1-year worth of free software upgrades on Internet via USB port
- Easy-to-use, with clear easy-to-read LCD display
- Capability to print TPMS sensor data via a PC after downloading
- Automatic power-off to preserve battery life
- Proper LF signal to prevent being fooled by other RF signals
- Saves up to 16 records
- If a failed sensor is detected, the tool displays the replacement part number
- Accessories included: Molded plastic case, one USB cable, magnet (for early model TPM sensors), one 9-volt battery, and one User's Manual
